Sealcoat Sprayers, Systems and Sealcoating Equipment

From easy-to-operate systems to larger, air-operated professional sealcoating spray systems, Asphalt Industrial is sure to have the right sealcoat sprayer or sealcoat spray system that meets your needs and your budget. We offer a variety of sealcoat sprayer and sealcoating equipment that can handle both small DIY projects and large-scale professional applications – all at affordable prices.

Not sure if a sealcoat spray system is right for you? No worries, we’re here to help you reach your business goals and find the right tools you need to continue growing your sealcoating business!

What Sealcoat Sprayer Should You Use?

Below is a list of the sealcoat spray systems that we offer at Asphalt Industrial. It overviews the different spray systems that you can use depending on the benefits that you’re looking for, your budget, and the type of sealcoating project that you will be working on.

Choosing the right sealcoat spray system for your needs will help you to sealcoat asphalt surfaces like a pro! Review the table and learn the differences between the variety of sealcoat sprayer machines available to you, and find the right one for your sealcoating project needs!



Sealcoat Sprayer System

Sealing Machine Description

Modes of Operation

Approved Sealers to Use

Scope of Project

Sealing Machine Price

Cost of Shipping

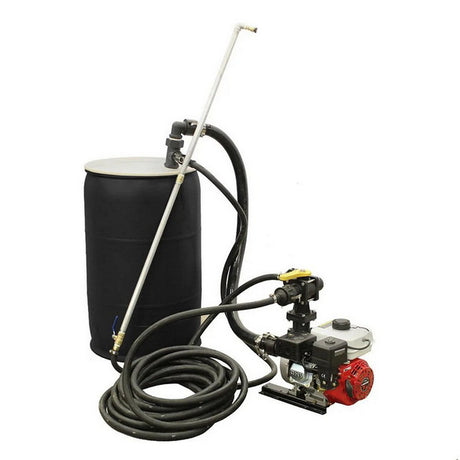

55 Gallon Sealer Sprayer for Drums - AK55 The AK55 Sealer Sprayer for Drums provides both mixing and spraying operations. It mixes faster than ever before, only taking 3-4 minutes when mixing sealer in a 55-gallon drum! Dual operation mechanism:

• Re-circulate mode: mix
sealer right in the drum

• Spray mode: switch the
ball valve to spray mode
for a fan-shaped spray
Coal tar emulsion

Asphalt emulsion (AE):
only use with GemSeal,
Sealmaster, & Neyra
sealers (do not use any
latex additives)
This sealing machine covers 600-700 square feet, making it the perfect choice for driveways and small parking lots From $1,149 Free Shipping

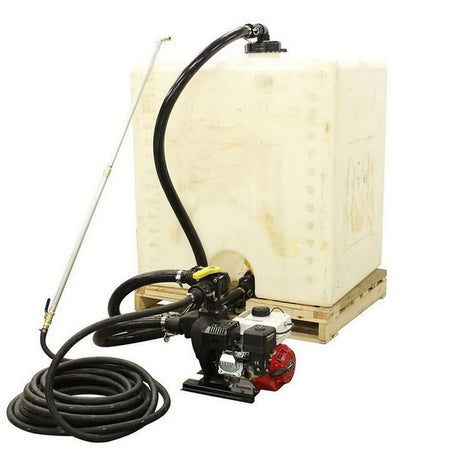

275 Gallon Tote Sealcoating Spray System - AK275 This sealcoating spray system attaches to a 275-gallon tote of sealer for both mixing and spraying. Provides remarkable performance and long-lasting durability, all at an affordable price. Mixes and sprays sealer all from one machine Coal tar emulsion

Asphalt emulsion (AE):
only use with GemSeal,
Sealmaster, & Neyra
sealers (do not use any
latex additives)
Designed for large driveways & small- to medium-sized parking lots. Can seal coat a 4-car, 600 to 700 square-foot driveway in less than 15 minutes From $1,099 Free Shipping

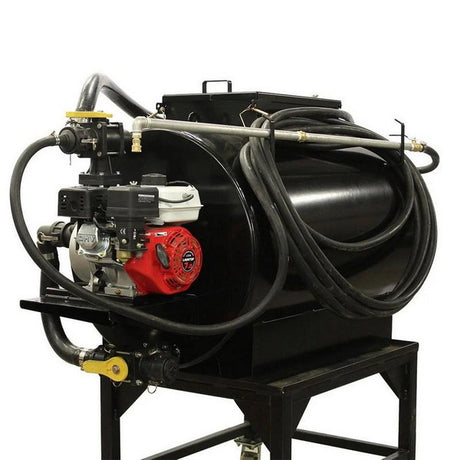

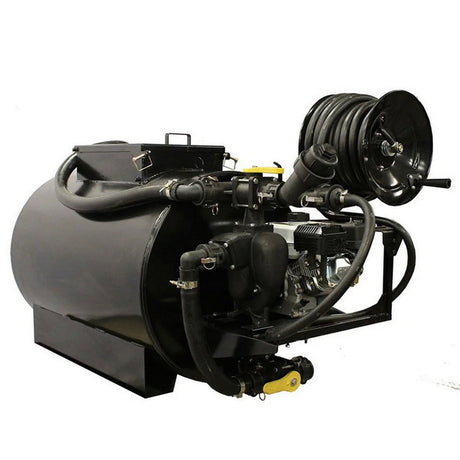

130 Gallon Residential Sealcoating Machine - AK130 This 130-gallon Residential Sealcoating Machine comes with the tools you need to efficiently mix and spray an even seal coat on any surface. Using this machine can earn over $2,000 on a full tank of asphalt sealcoat! Two modes of efficient operation lets you mix and spray like a professional for effective sealing Coal tar emulsion

Asphalt emulsion (AE):
only use with GemSeal,
Sealmaster, & Neyra
sealers (do not use any
latex additives)

This sealcoating spray system has a precisely welded leak-proof, sturdy steel tank with a capacity of 130 gallons that can cover 13,000 sq. feet – the equivalent of a 4-car driveway

From $3,249 Free Shipping

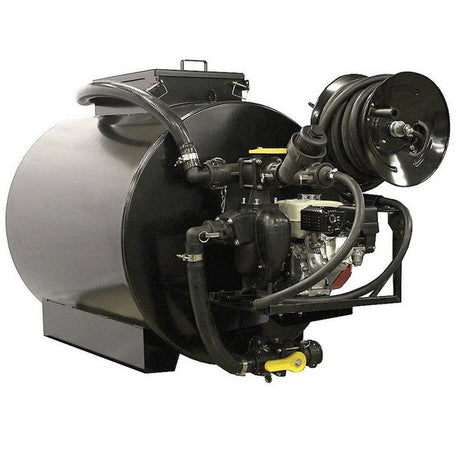

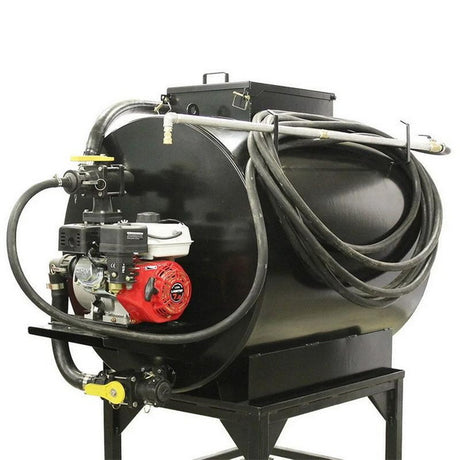

230 Gallon Sealcoating Sprayer System - AK230 The AK230 Sealcoating Sprayer has a tank capacity of 230 gallons and takes less than a minute to assemble and disassemble, allowing for easy maintainence and quick cleaning of the sprayer Three modes of operation:

• Transfer mode: easily
transfer asphalt sealcoat
to-and-from drum & tank

• Re-circulate mode:
simple mixing of sealer

• Spray mode: apply
sealer like a pro
Coal tar emulsion

Asphalt emulsion (AE):
only use with GemSeal,
Sealmaster, & Neyra
sealers (do not use any
latex additives)

Note: only uses asphalt sealer without sand
This 2-in-1 spray system is perfect if you are looking to seal residential driveways and commercial parking lots. Its lightweight build can spray up to 23,000 sq. feet on each fill-up From $3,749 Free Shipping
300-AIR Duramax Air Powered Sealcoat Sprayer System - AK300-AIR The AK300-AIR is an air-operated sealcoat sprayer system with a 300-gallon capacity and has a full sweep, hand-operated 2-in-1 gear system.

Easy to operate: just fill up the fuel tank, add engine oil and fill the 300-gallon tank with asphalt sealer and you're ready to start spraying!
Ball valve with two modes:

• Re-circulate mode: mix
sealer right in the drum

• Spray mode: for a
cone-shaped spray
under immense pressure
Three types of sealer:

Coal tar emulsion

• Acrylic

Asphalt emulsion (AE)
This easy-to-operate air-operated sealer sprayer system can provide up to 30,000 square feet of coverage per tank! From $14,499 Free Shipping

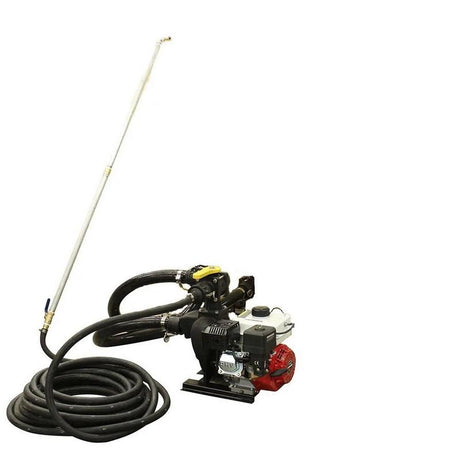

Portable-Pro Seal Coating Equipment Machine This portable sealcoating machine is air-operated and delivers power-packed performance. Its versatility makes it easy to spray sealer directly from drums, totes, tanks, hand agitated units or other sealer storage containers without having to transer sealer Sprays asphalt sealer directly from barrels, totes, tanks or other storage containers of sealer Two types of sealer:

Coal tar emulsion

Asphalt emulsion (AE):
only use with GemSeal,
Sealmaster, & Neyra
sealers (do not use any
latex additives)

Note: can spray asphalt sealer WITH sand loads
Great option for those new to sealcoating and those who want to save time with the versatility of spraying sealer directly from the drums/totes From $5,499 Free Shipping
PROMAX Air Operated Hydraulic Agitated Spray System –
575 / 750 / 1000 Gallon
With unbeatable value and performance, the PROMAX Air Operated Hydraulic Agitated Spray System is built with high quality components and has all of the features that a mid to pro-level sealcoating contractor needs. This system is built with a steel tank and skid construction, making it bulletproof and safe from any potential rollovers. The powerful pump and diaphragm are fast, processing up to 130 gallons of sealer per minute! Full sweep six paddle hydraulic agitation with rubber wiping blades properly mixes sealer and can spray straight sealer or asphalt sealer with with sand loads Two types of sealer:
a
Coal tar emulsion

Asphalt emulsion (AE):

Note: can spray asphalt sealer WITH sand loads
This spray system is great for mid to pro-level contractors who operate a professional sealcoating company.
Also, if you’re looking to spray asphalt sealers with sand loads, this is the best fit for you.
From $19,900 Free Shipping


 Sealcoat Sprayers With Power Packed Performance!

Our sealcoat sprayers and spray systems come at affordable prices, high-quality materials and performance that will be sure to leave you – and your clients – with a finished product you can be proud of.

Many of our sealcoating spray systems feature cast iron pumps, which are known for their industry leading durability. The typical aluminum and poly pumps sold by other competitors will often break down quickly from the strain of sealcoating, leaving you with leaky seals and low pressure when spraying.

Our sealcoat spray systems spray also are equipped with fuel efficient engines, including four stroke engines with oil sensor alert, making it virtually impossible to have an empty oil tank and burn out your motor.

All of the plumbing, hoses, quick connections and gun are industrial grade quality and built for commercial use, meaning you can use your sealcoat sprayer with full confidence that it will hold up well against heavy use.

Finding the right tools needed to get the job done can often be a challenge. At Asphalt Industrial, we know what sealcoating contractors need to perform well and make their lives easier.

That’s why we highly recommend moving to a sealcoat spraying system rather than applying asphalt sealcoat by hand. Not only is it easier, but it’s significantly quicker and more efficient. Investing in a sealcoat sprayer or spray system allows you to get more jobs done throughout the day and increase your profits.

A common concern among contractor’s is understanding exactly how much sealcoat area your spray system can cover. Though it may seem difficult, there is an easy way to figure this number out. Generally speaking, you will get:

  • 100 square feet of sealer coverage per gallon if you’re spraying it, and
  • 75 square feet of coverage per gallon if you’re applying the sealer by hand with a squeegee or a seal brush.

Using these averages, you should be able to calculate exactly how much coverage you might get, depending on the method of application you are using.



Sealcoat Sprayer System Coverage Rate Guide

  • Drum Sprayers connect to a 55 gallon drum and will provide 5,500 square feet of coverage per drum.
  • Tote Spray Systems connect to a 275 gallon tote and will provide 27,500 square feet of asphalt surface.
  • The AK130 Sealcoater will provide you with 13,000 square feet of sealer coverage.
  • The AK230 Sealcoating Sprayer will give you 23,000 square feet of sealer coverage.
  • Our Air Operated Systems are best suited for professional contractors who plan to spray sealer with heavy loads of sand.

We recommend using a drum sealer spray system or a tote sprayer for those starting their sealcoating business and are on a very limited budget, as well as those working on a DIY project for their own large sized driveway or parking lot. These are great options for property owners and part time or new contractors as they’re affordable and have a fan-shaped spray pattern which produces an even application.

If you’re starting your own professional asphalt sealcoating business or just have a large parking lot that you need to sealcoat, we recommend going with a sealcoat spray system with a larger capacity tank. The AK130, AK230 and Air Operated Sprayer Systems are the preferred options for the scope of a large project and deliver excellent results.

Though we provide our customers with the fastest and most effective sprayers on the market, it’s still important to take your time during the sealer application process. Ensuring an even sealer application can be a real challenge when starting out, and the last thing you want is an uneven finish that is striped or has different shades.





Be sure to follow this checklist before you begin, as well as while you are performing a sprayed application process:

  1. Make sure the sealer is properly diluted. We recommend diluting with water, at a 20%-30% ratio before running it through your sealcoating spray system.
  2. Ensure that your material is mixed well and all solids are mixed into a liquid form. Any clusters of sealer can create a sputter at your gun tip, puddling your sealcoat and giving it a darker shade in that area.
  3. Keep a five-gallon bucket of water – with a sponge and some rags – near you during the application process so you can clean up any spilled or oversprayed sealer.

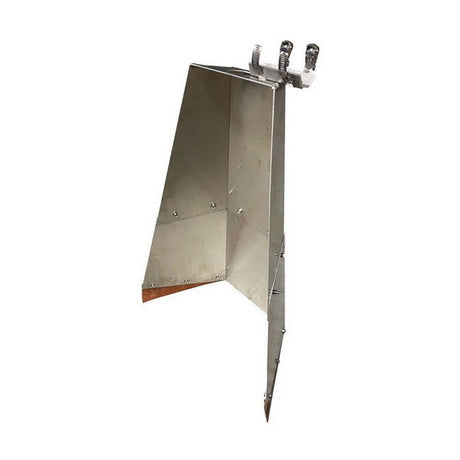

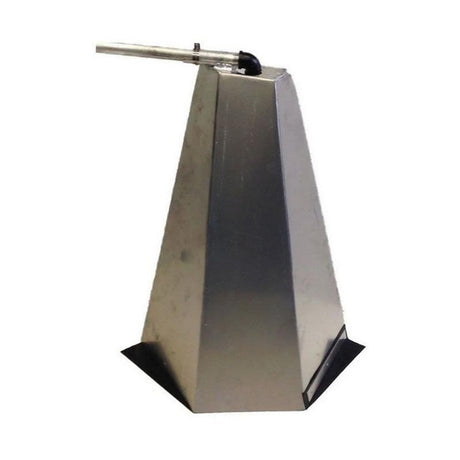

  4. Protect surface borders, retaining walls and garage doors from any overspray with an edger. You can also use plywood or tape. This will save you time and the headache of cleaning up overspray, which can be very difficult to do once it’s dry.
  5. Start with spraying a 3-4 foot border around all of the parameters of the surface that you are sealcoating. This will keep the surface borders safe and allow you to spray the main area without worrying about overspray.
  6. Always start spraying sealer at the opposite end of your sealer spray system, moving from left to right (or vice versa) and holding the spray tip 2-3 feet above the asphalt surface. Work at a slow walking pace to ensure that the sealer is completely covering the area. Remember that it’s always better to apply a little more sealer than to leave any areas unsealed.
  7. Provide an overlap halfway over your spray passes, essentially applying two coats in one. A 50% overlap throughout your spray pattern will leave you with an excellent result.

Using this checklist before you begin operating your sealcoating spray system will help you spend more time making money and avoid unnecessary downtime. After all, your spray system is your business!



Before You Start: Tips Before You Get on The Asphalt Job!

  1. Keep the sealer level where it was when you stored it.
  2. Make sure spray tips are all clean and ready to use.
  3. Ensure the engine is full of gas.
  4. Check oil level.
  5. Confirm that your machine’s valves are in the re-circulation position.
  6. Start the engine and verify that the sealer is re-circulating in the main tank. If yes, the pump is primed and ready.
  7. Lastly, switch your valves into spray mode and begin spraying!

Routine Maintenance Schedule for Your Sealcoat Spray System: Keep Your Sealcoating Equipment In Excellent Shape

  1. Change the motor oil every 100 hours of active use.
  2. Replace the engine spark plug every 200 hours of active use.
  3. Clean the air filter approximately every 80 hours.
  4. Carefully inspect all plumbing, hoses and quick connects every 40 hours.
  5. Completely drain your tank and clean the inside using a pressure washer before the season begins and after the season ends.
  6. Use black rust paint to touch up any scratches on your tank to prevent rusting (if applicable).

What Is A Sealcoat Sprayer?

Sealer can be applied in two ways: by hand with a squeegee, sealer brush or broom, or by using a sealcoating spray system. Applying by hand is only practical for small-scale projects like 2-car driveways. For most others, we recommend a sealcoat sprayer:

  • Unmatched Results: Professional sealcoating without the hassle. Sprayers let you consistently apply even seal coats across all your jobs, leading to happy customers who become repeat customers!
  • Save Material, Save Money: Sealcoat sprayer machines can save you 40% of the material used thanks to their efficient control mechanisms, saving you money on sealer.
  • Time-Saving: Sealcoat a 4-car driveway in under 15 minutes! No, seriously, they’re that fast.
  • A Fast Return On Your Investment: Saving time and material means more jobs and lower expenses. See your investment pay for itself in no time!

Have a Question or Need Assistance with Purchasing Sealcoating Equipment? We're Here to Help!

Call us today at 1-888-320-9855 or email us at info@asphaltindustrial.com and we’ll be happy to help you!
